Hazet

177W-7/169

Mobile work bench with assortment

169

- 177W-7 Mobile Work Bench
- 2128N-1 Twist drill bits in case
- 2240N/36 "BitE"-box
- 163-30/25 Combination wrench / double box-end wrench set
- 163-57/56 Socket set
- 163-31/27 Tool set

Retail

4000896157310

Proposition 65 Warning

NCNR - Non-Cancellable / Non-Returnable

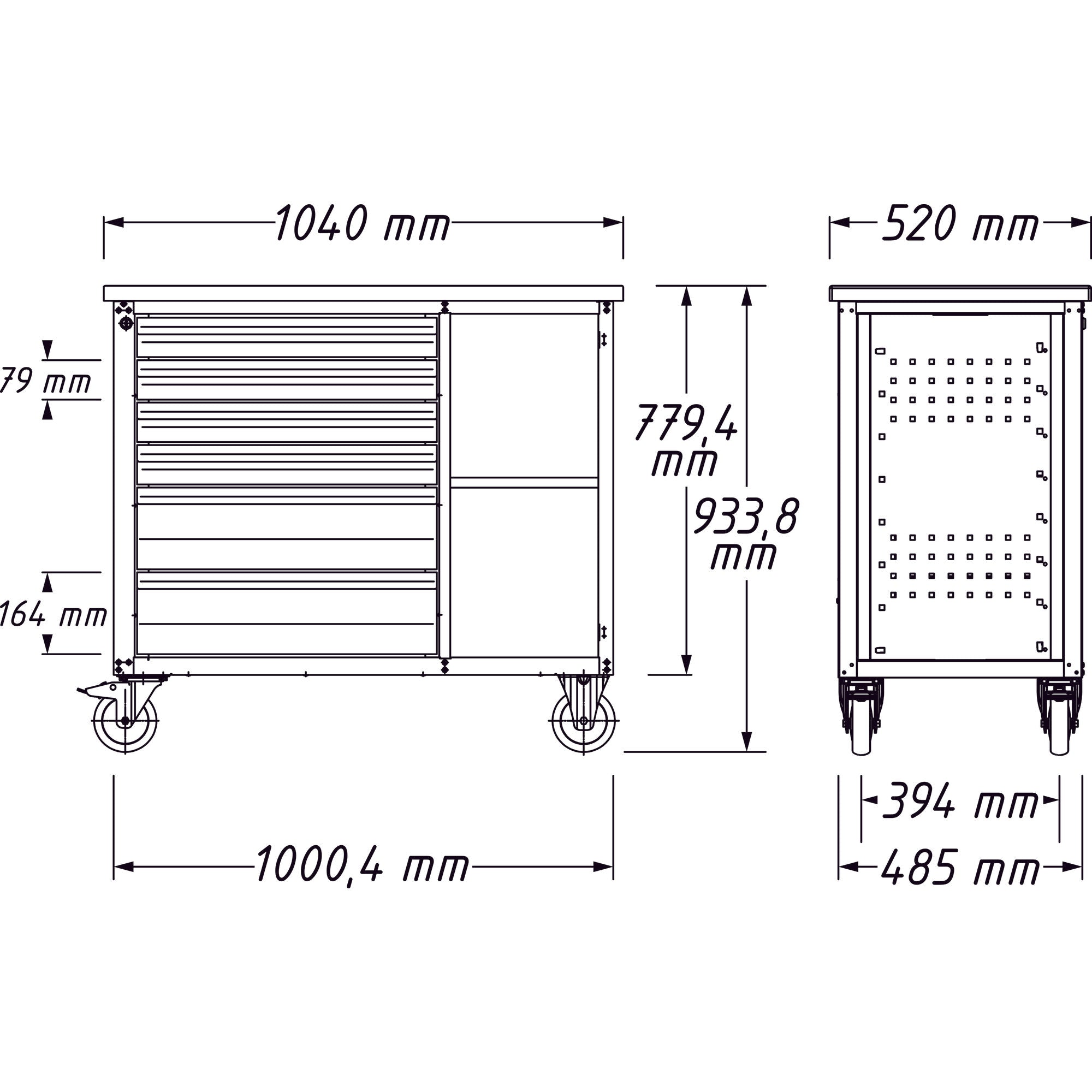

1040 mm

520 mm

934 mm

HAZET blue

Drawers, flat: 6 x 79 x 527 x 348 mm
Drawers, high: 1 x 164 x 527 x 348 mm
Drawer size for order system: 3/3

6 x flat drawers and 1 x high drawer as well as 2 compartments in the side section
Complete with 169-piece tool assortment in Safety-Insert-System soft foam insert
Large ball-bearing wheels (∅ 125 mm), easy maneuverability, even with high dynamic load
2 swivel castors with double stop function: fixed castor prevents inadvertent rolling of the trolley, fixed swivel bearing prevents the castors from swiveling, e.g. on inclined surfaces
Protective ring prevents dirt and threads from getting in
Grey non-marking elastic tires enable smooth movement
Two-stage locking concept:
Central locking, lockable with cylinder lock and 2 keys
Individual drawer locking prevents unwanted drawer opening
100% sliding-out with roller guides
Boards in the storage compartment:
Loading capacity top: 15 kg / bottom 35 kg
Storage shelves adjustable
Optional: 177 W-21: Door for right storage compartment, lockable, including 2 keys
Total loading capacity (dynamic): 500 kg
Loading capacity (static): 750 kg
Worktop: Wood multiplex birch, replaceable
Loading capacity per drawer: 20 kg
Number of separation sheets: 7
Worktop height: 934
Number of fixed castors: 2 (∅ 125 mm)
Number of swivel castors: 2 (∅ 125 mm)
The drawers are equipped with one separation sheet each as standard
Drawer-Division-System – suitable for HAZET “Safety-Insert-System” and plastic drawer inserts
Side with fastening panel, e.g. for HAZET tool hooks of the article group 112, can holder, etc.
